Lab 1.3: Review/Set Device Settings¶

Task 1 – Set Device Hostname & Disable GUI Setup Wizard¶

In this task we will modify the device hostname and disable the GUI Setup Wizard. The Resource that contains these settings is /mgmt/tm/sys/global-settings.

Perform the following steps to complete this task:

1. Expand the “Lab 1.3 – Review/Set Device Settings” folder in the Postman collection
2. Click the “Step 1: Get System Global-Settings” item. Click the ‘Send’ button and review the response body to see what the current settings on the device are.

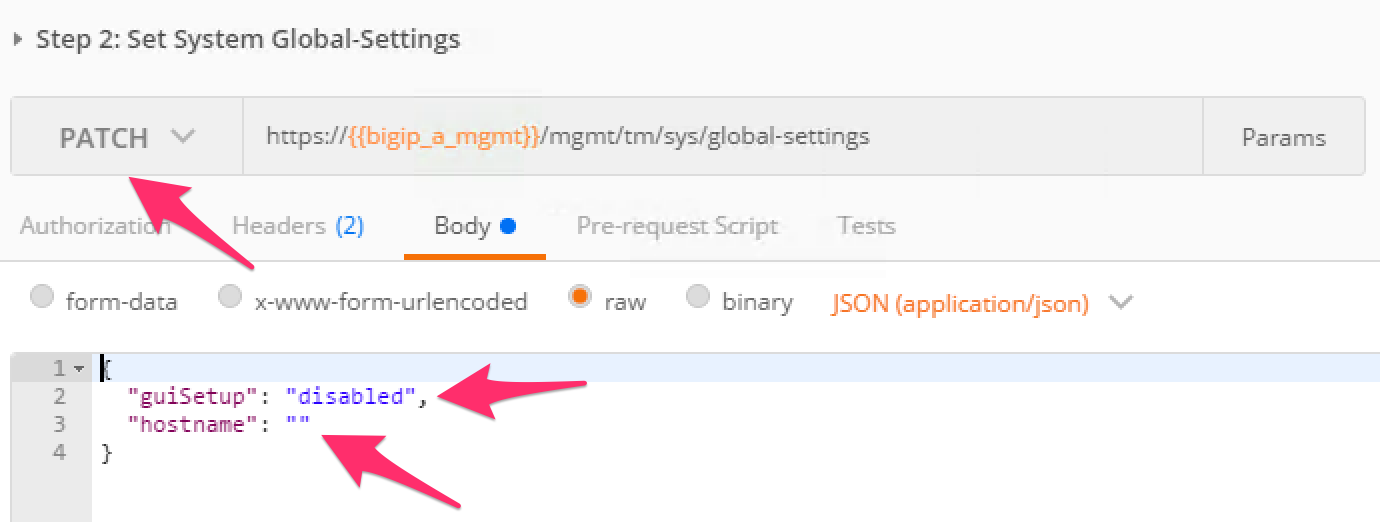

3. Click the “Step 2: Set System Global-Settings” item. This item uses a PATCH request to the global-settings resource to modify the attributes contained within it. We will update the guiSetup and hostname attribute.
   • Review the JSON body and modify the ‘hostname’ attribute to set the hostname to bigip-a.f5.local
   • Also notice that we are disabling the GUI Setup Wizard as part of the same request:
4. Click the ‘Send’ button and review the response body. You should see that the attributes modified above have been updated. You can also GET the global-settings again to verify they have been updated.

Task 2 – Modify DNS/NTP Settings¶

Much like the previous task we can update system DNS and NTP settings by sending a PATCH request to the correct resource in the ‘sys’ Organizing Collection. The relevant Resources for this task are:

Perform the following steps to complete this task:

1. Click the “Step 3: Get System DNS Settings” item in the collection. Click ‘Send’ and review the current settings
2. Click the “Step 4: Set System DNS Settings” item in the collection. Review the JSON body to verify the name server IPs 4.2.2.2 and 8.8.8.8 are listed. Additionally add a search domain of ‘f5.local’. You will modify a JSON array for both of these attributes.
3. Click the ‘Send’ button and verify the requested changes were successfully implemented
4. Click the “Step 5: Get System NTP Settings” item in the collection. Click ‘Send’ and review the current settings
5. Click the “Step 6: Set System NTP Settings” item in the collection. Review the JSON body to verify the NTP servers with hostnames 0.pool.ntp.org and 1.pool.ntp.org are contained in the servers attribute (another JSON array!)
6. Click the ‘Send’ button and verify the requested changes were successfully implemented

Task 3 – Update default user account passwords¶

In this task we will update the passwords for the ‘root’ and ‘admin’ accounts. The process for updating the root account is different then other system accounts due to the special nature of the root account.

To update the root account password we will use a POST to a shared REST worker at /mgmt/shared/authn/root

To update all other system accounts we will PATCH the /mgmt/auth/user/<username> Resource

Perform the following steps to change the root user password:

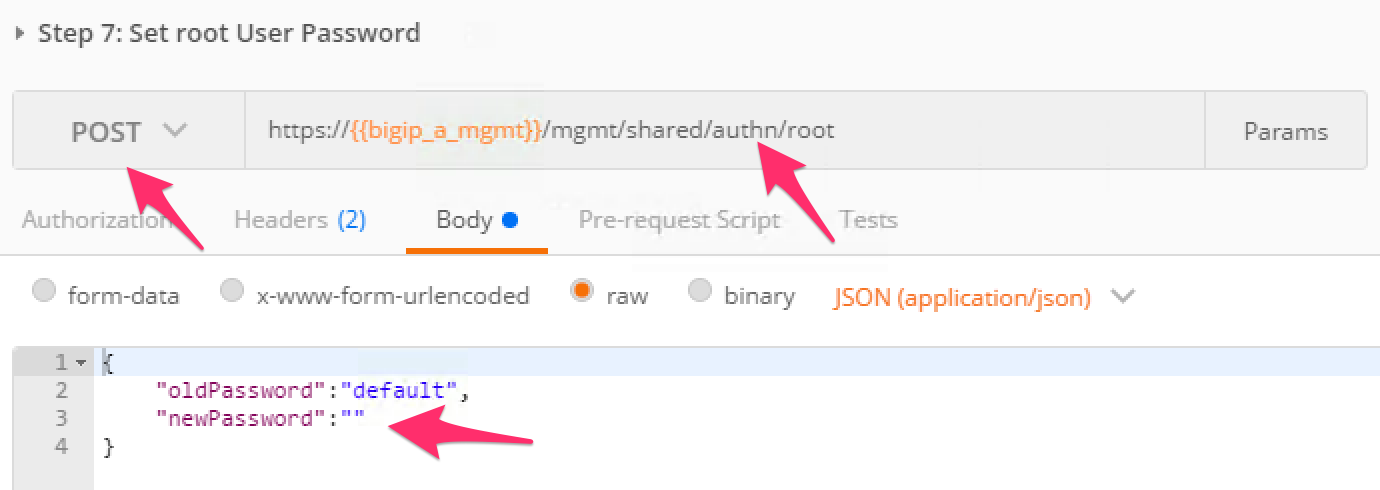

1. Click the “Step 7: Set root User Password” item in the collection.

2. Notice that we a performing a POST operation to a shared REST worker. Modify the JSON body to update the password to the value “newdefault” and click the ‘Send’ button.



3. You can verify the password was changed by opening an SSH session using PuTTY to BIG-IP-A.

4. Repeat the procedure above to change the password back to “default”

Perform the following steps to change the admin user password:

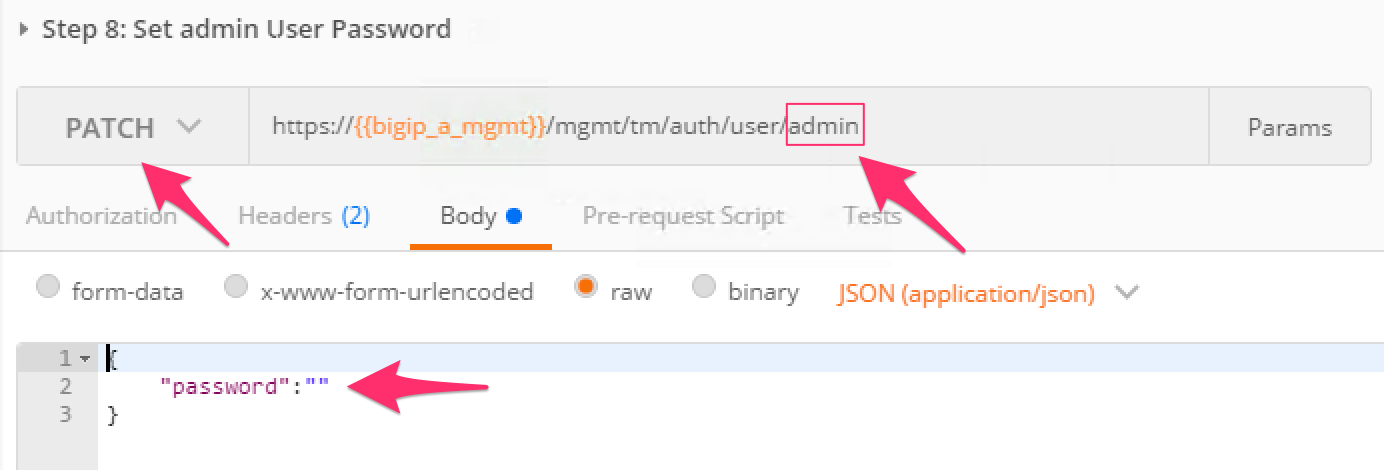

1. Click the “Step 8: Set admin User Password” item in the collection.

2. Notice that we a performing a PATCH operation to admin user Resource. Modify the JSON body to update the password to the value “newadmin” and click the ‘Send’ button.



3. You can verify the password was changed by opening an SSH session using PuTTY to BIG-IP-A OR by logging into TMUI in a Chrome browser tab.

4. Repeat the procedure above to change the password back to “admin”
